PAN-Crafter: Learning Modality-Consistent Alignment for PAN-Sharpening

PAN-sharpening aims to fuse high-resolution panchromatic (PAN) images with low-resolution multi-spectral (MS) images to generate high-resolution multi-spectral (HRMS) outputs. However, cross-modality misalignment—caused by sensor placement, acquisition timing, and resolution disparity—induces a fundamental challenge. Conventional deep learning methods assume perfect pixel-wise alignment and rely on per-pixel reconstruction losses, leading to spectral distortion, double edges, and blurring when misalignment is present.

To address this, we propose PAN-Crafter, a modality-consistent alignment framework that explicitly mitigates the misalignment gap between PAN and MS modalities. At its core, Modality-Adaptive Reconstruction (MARs) enables a single network to jointly reconstruct HRMS and PAN images, leveraging PAN’s high-frequency details as auxiliary self-supervision. Additionally, we introduce Cross-Modality Alignment-Aware Attention (CM3A), a novel mechanism that bidirectionally aligns MS texture to PAN structure and vice versa, enabling adaptive feature refinement across modalities. Extensive experiments on multiple benchmark datasets demonstrate that our PAN-Crafter outperforms the most recent state-of-the-art method in all metrics, even with 50.11× faster inference time and 0.63× the memory size. Furthermore, it demonstrates strong generalization performance on unseen satellite datasets, showing its robustness across different conditions.

Misaligned inputs, sharp outputs

Aligns MS texture and PAN structure both ways; beats the latest state of the art in all metrics at 50.11× faster inference.

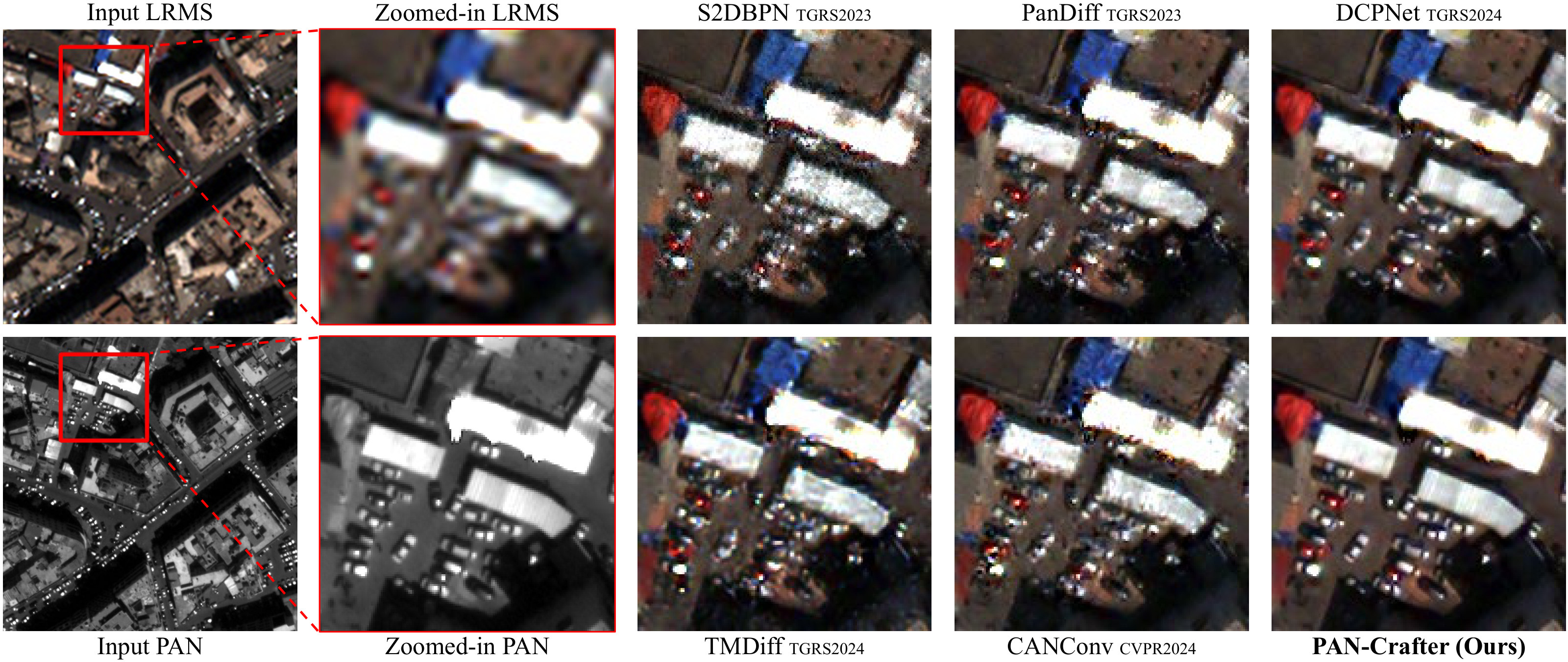

WV3 scene at full resolution: the input LRMS and PAN images with a red box, their zoomed-in views, and the zoomed-in outputs of S2DBPN, PanDiff, DCPNet, TMDiff, CANConv and PAN-Crafter around parked cars and white-roofed buildings. — **Full-resolution comparison on WV3.** Input LRMS and PAN with zoomed-in views, five recent methods and PAN-Crafter: minimal artifacts near buildings and cars, where other approaches often yield blurred or distorted results.

All methods, same scenes

The zoomed-in crops of the paper’s full-resolution figures at their native resolution: recent methods and PAN-Crafter on the same LRMS and PAN input, including WV2, a satellite unseen in training. Select a tile to compare it with PAN-Crafter.

Input LRMS / PAN (zoomed-in) PAN-Crafter (ours) Baseline

Use the arrows or the ← → keys to change scene · click a tile to compare it with PAN-CrafterSwipe or use the arrows to change scene · tap a tile to compare it with PAN-Crafter

Whole scenes at full resolution

Complete 512 × 512 full-resolution scenes from each satellite: the input LRMS, CANConv and PAN-Crafter.

Click a tile to open the comparison slider against PAN-CrafterTap a tile to open the comparison slider against PAN-Crafter

Paper figures

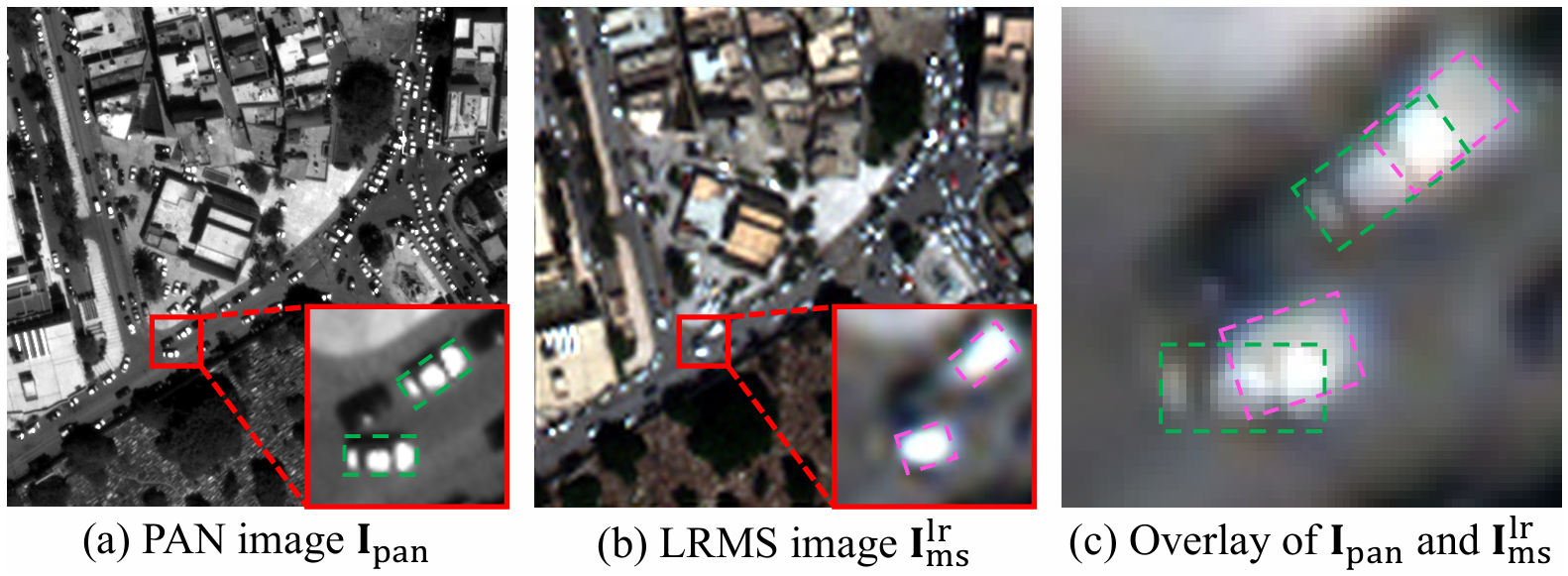

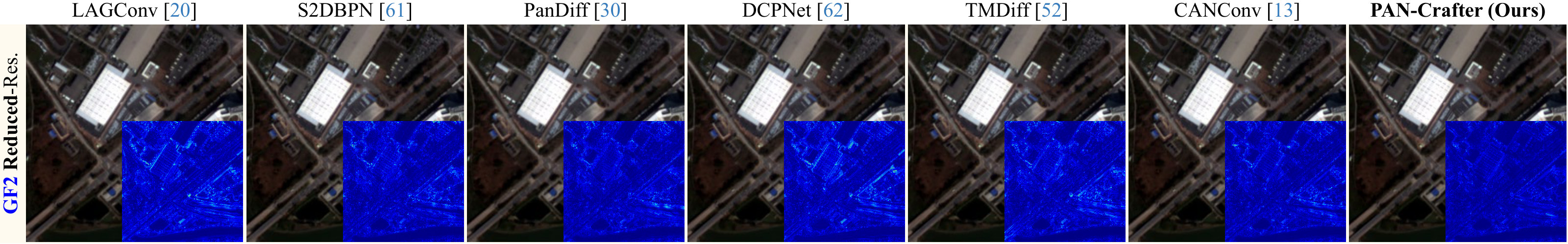

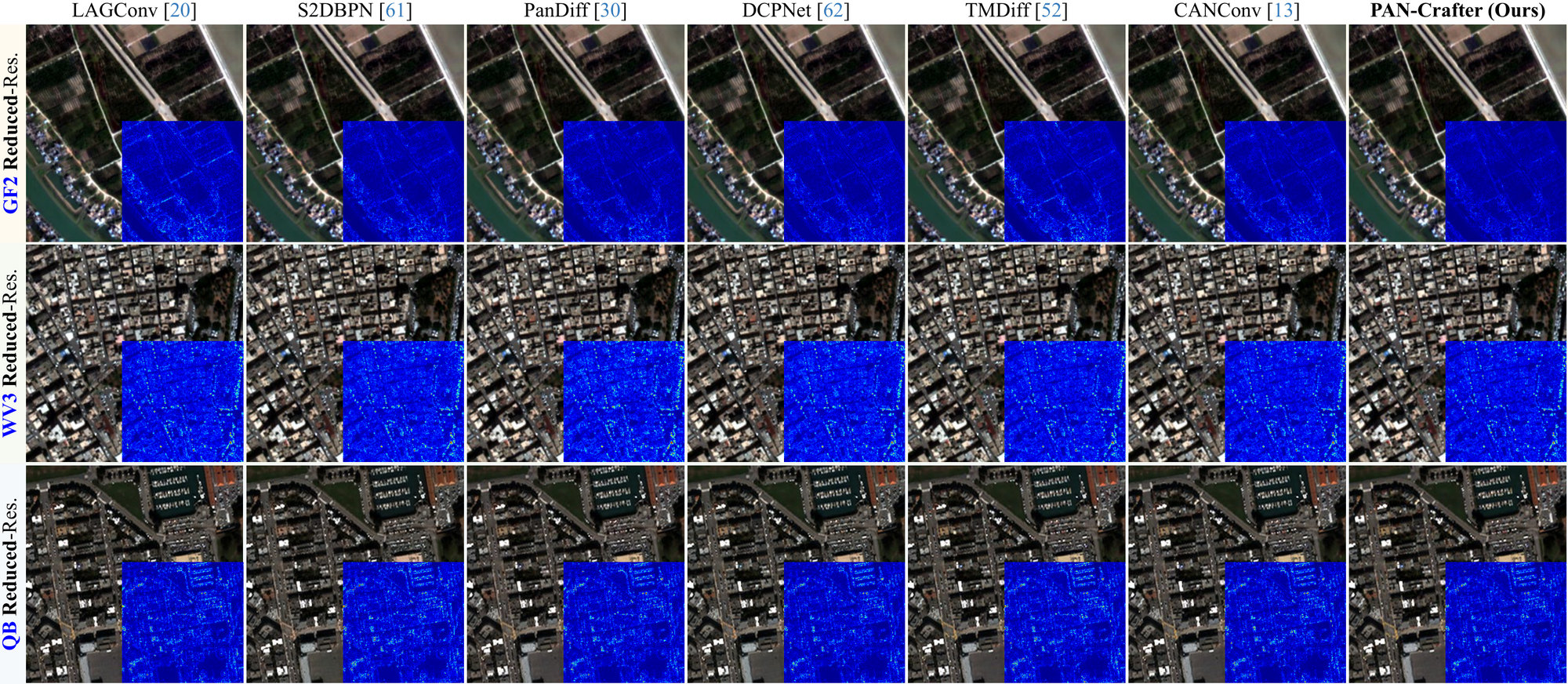

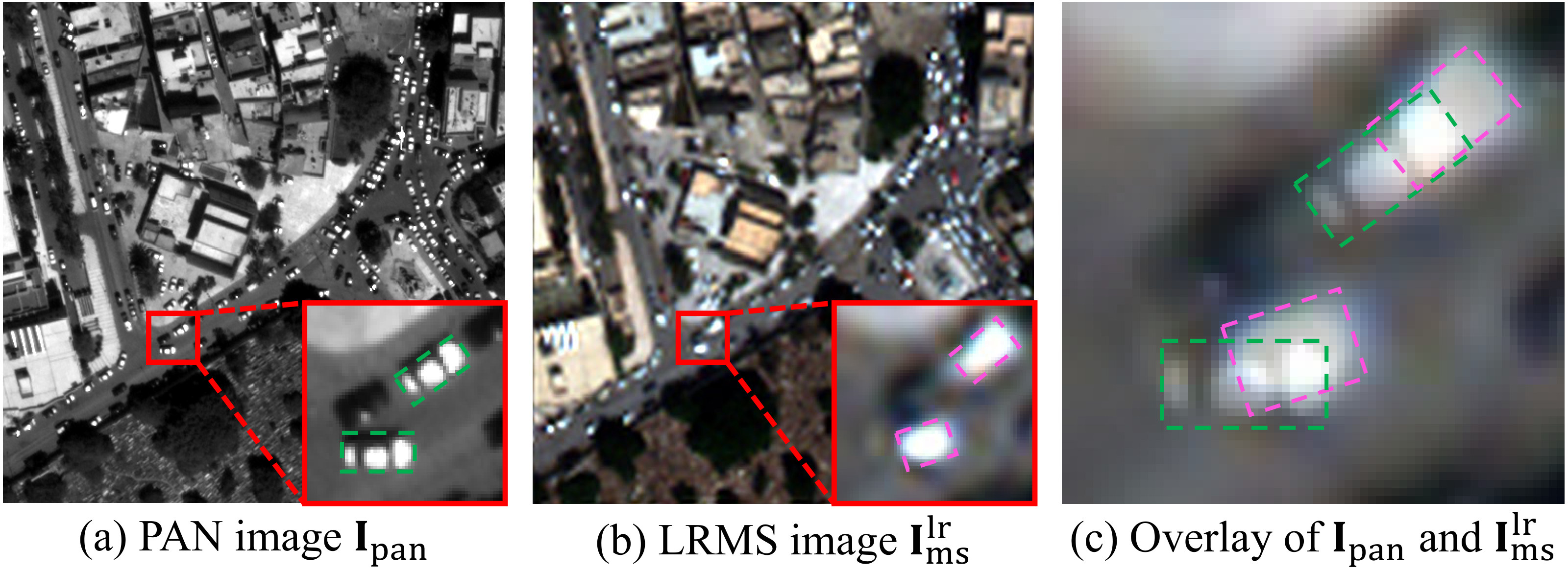

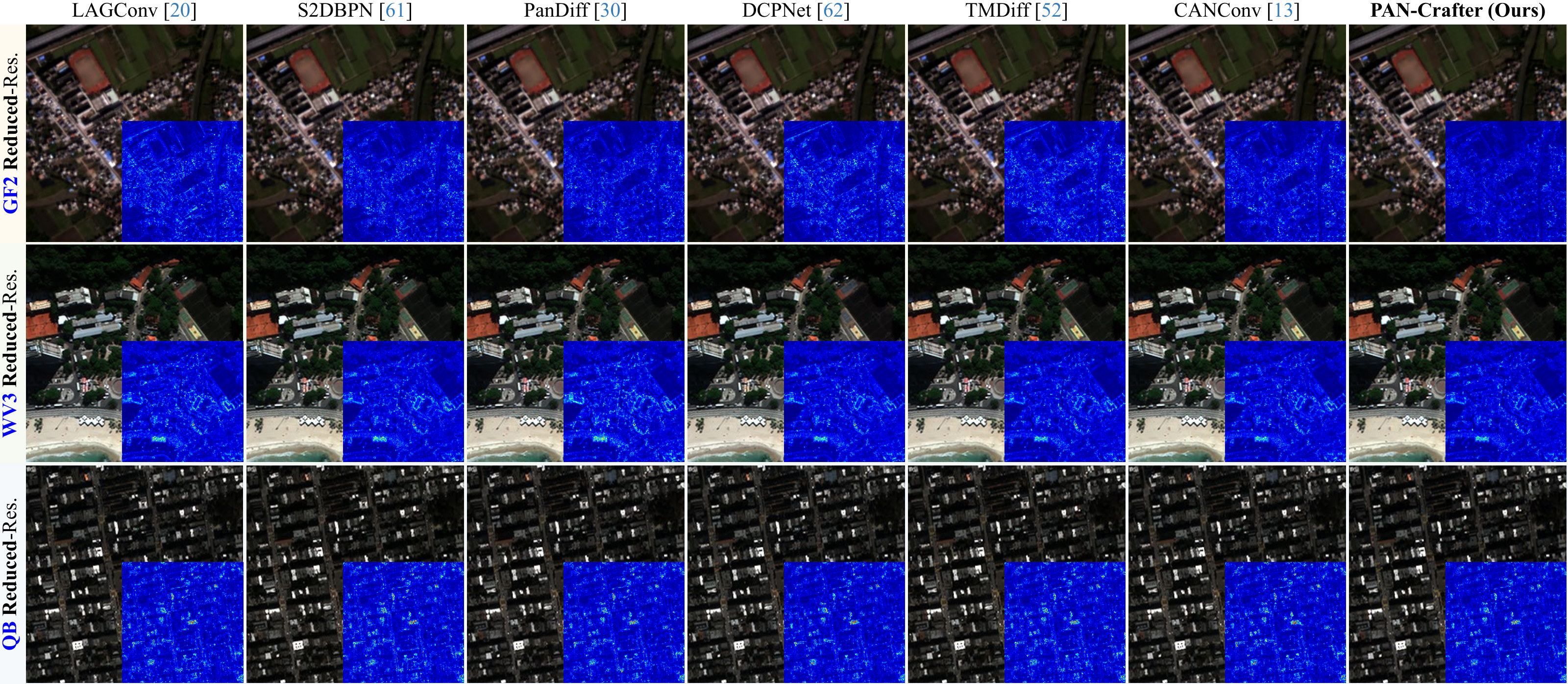

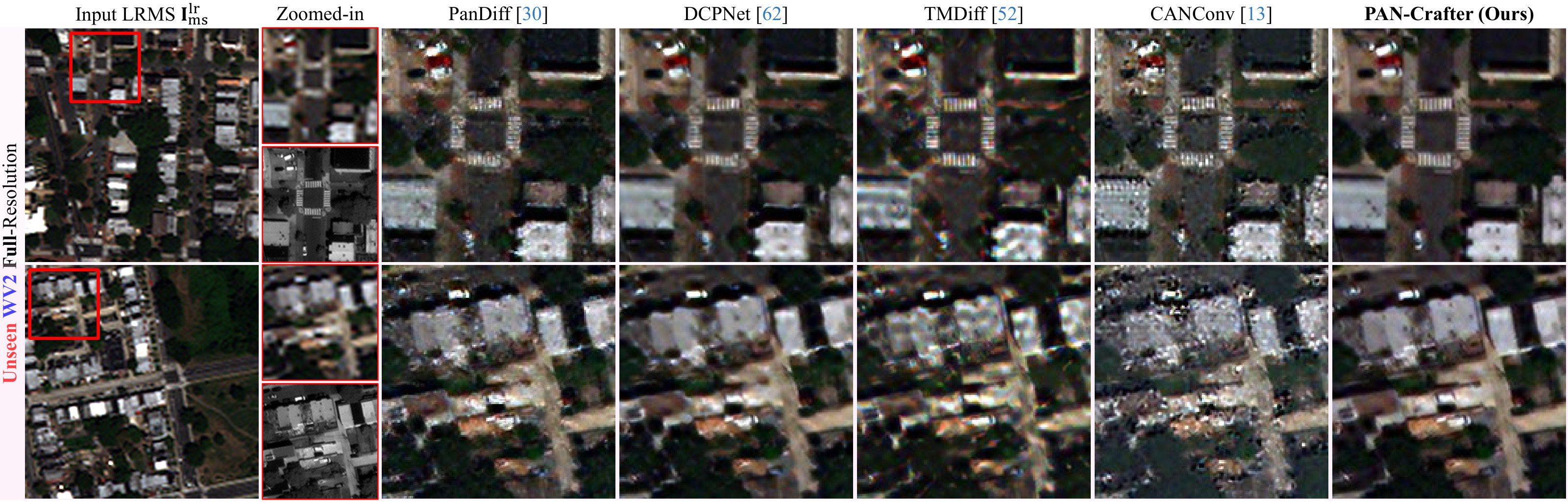

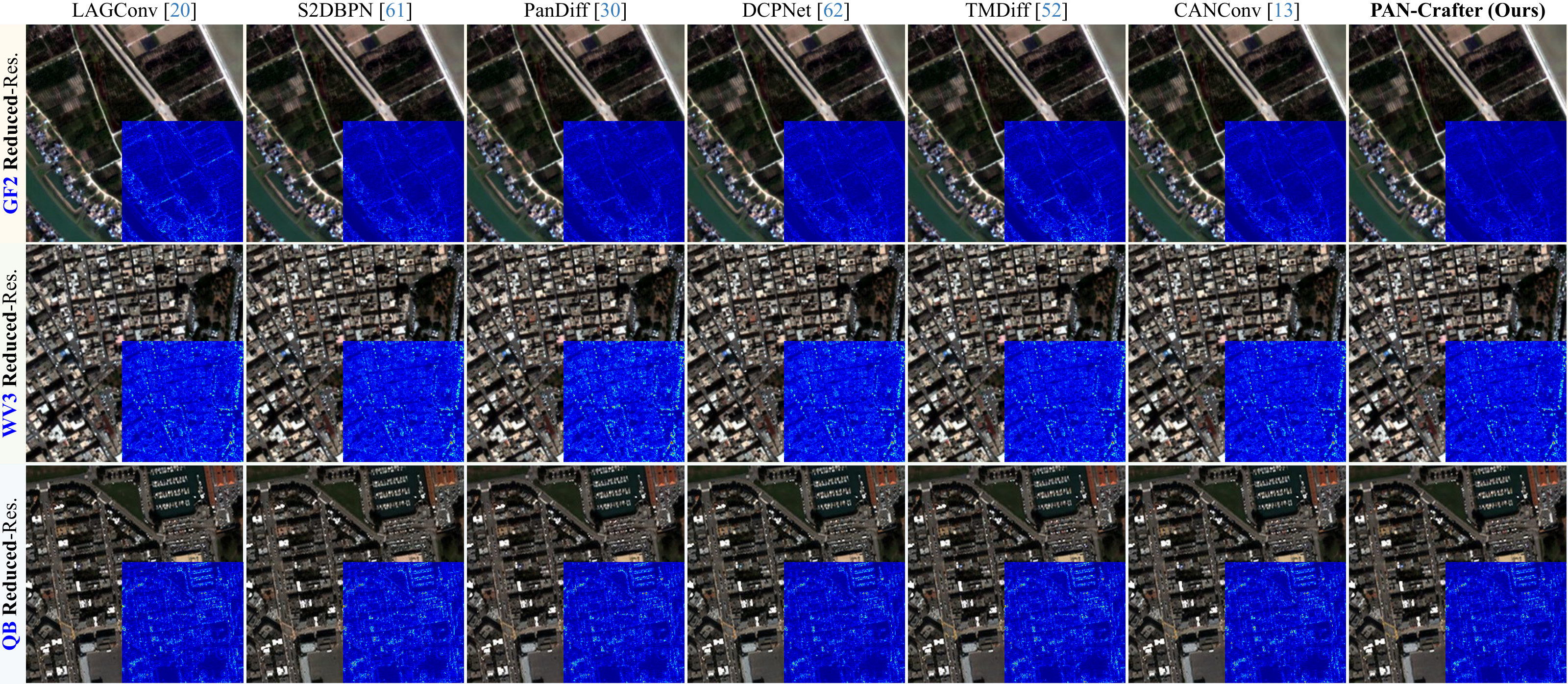

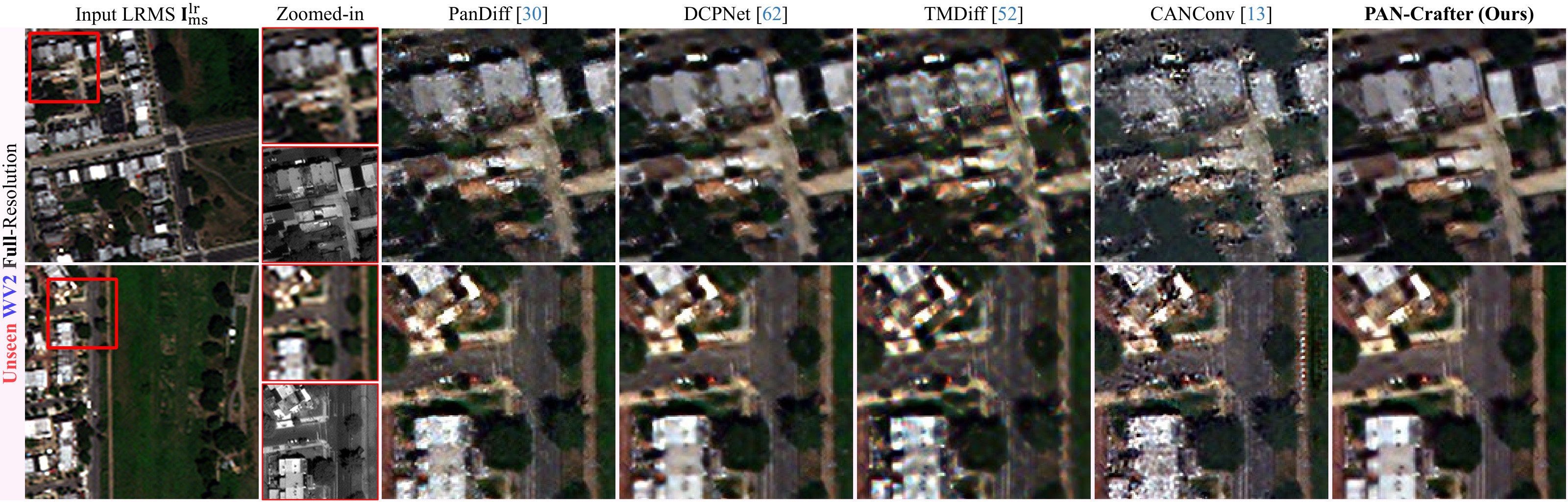

Full- and reduced-resolution comparisons with error maps, the unseen WV2 satellite, and the PAN–MS misalignment that CM3A addresses.

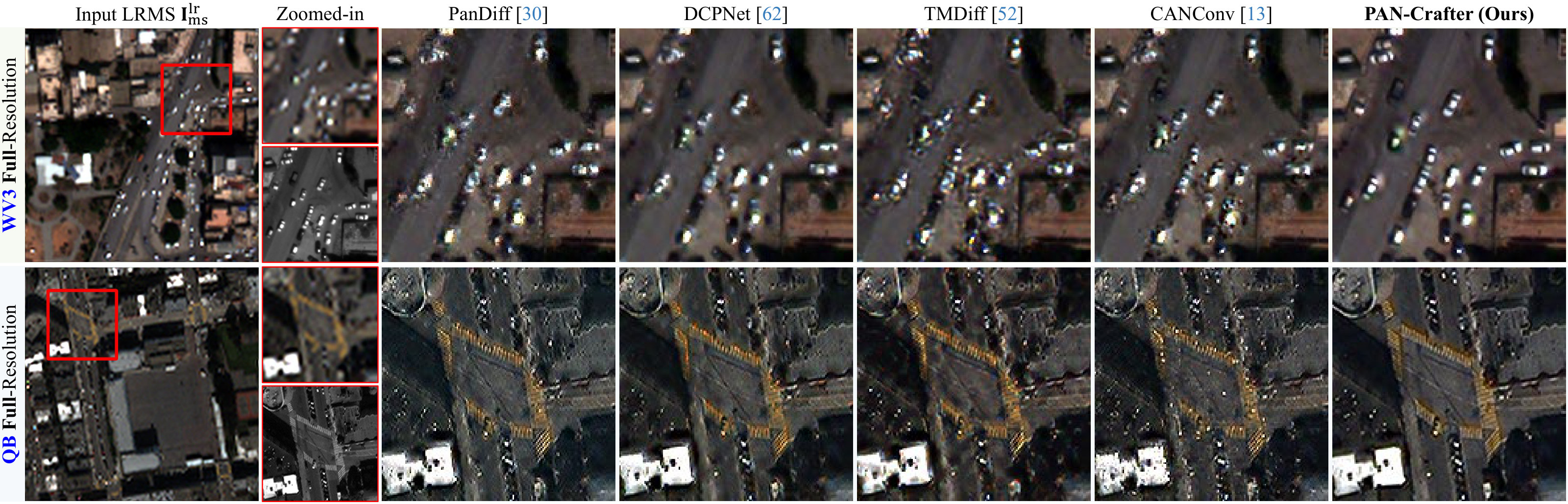

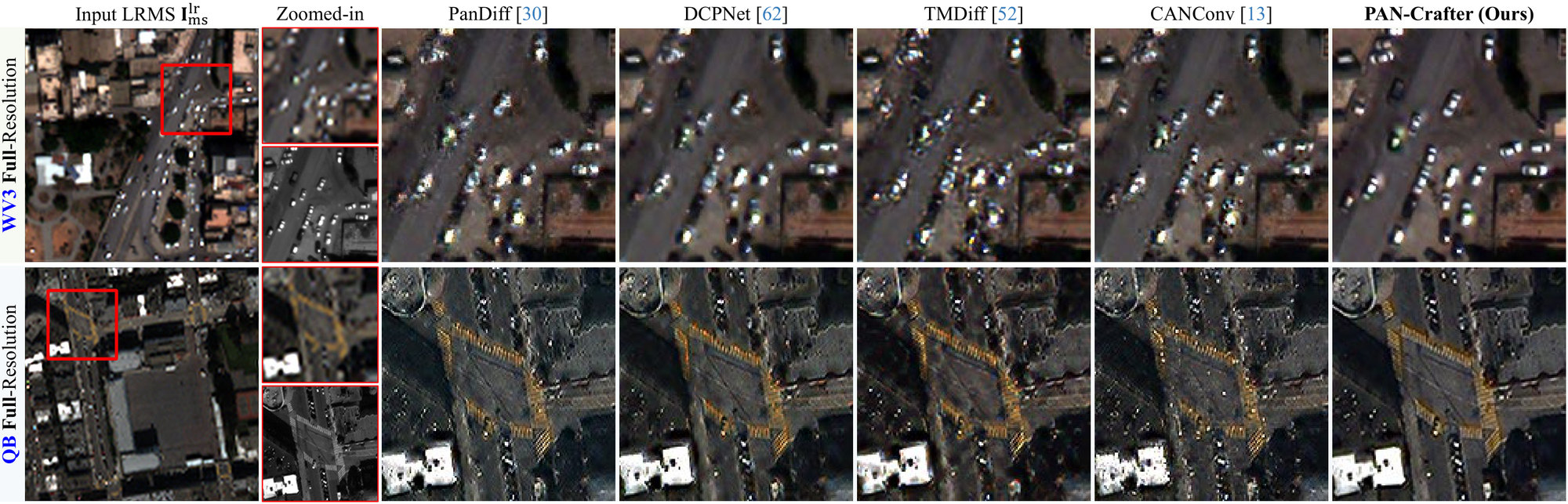

Two rows, WV3 and QB at full resolution: input LRMS with a red box, zoomed-in LRMS and PAN, then PanDiff, DCPNet, TMDiff, CANConv and PAN-Crafter around cars on a road and yellow crosswalk lines. — Fig. 5. **Full-resolution comparison on WV3 and QB.** Only PAN-Crafter produces clear edges around cars, buildings and crosswalk lines; previous methods tend to produce blurry and distorted results from misaligned PAN and MS pairs.

Quantitative results

PAN-Crafter is best in 8 of 9 quality metrics on WV3, in all six on GF2, in 4 of 6 on QB and in 4 of 5 on the unseen WV2, with the lowest memory use.

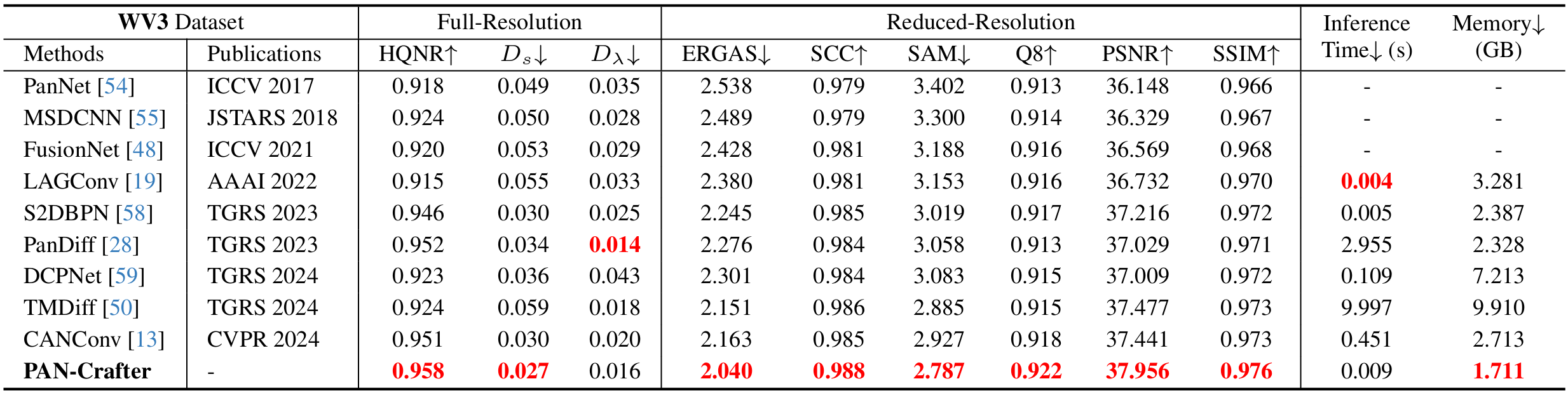

Table 1. Quantitative comparison on the WV3 dataset. Deep learning-based PS methods at full and reduced resolution. Bold indicates the best performance in each metric. The inference time and memory usage are measured on a 256 × 256 × 8 HRMS target at reduced resolution.

Bold best↓ lower is better · ↑ higher is better

Scroll for more columns

Method	Venue	Full resolution			Reduced resolution						Time↓ (s)	Memory↓ (GB)
Method	Venue	HQNR↑	D_s↓	D_λ↓	ERGAS↓	SCC↑	SAM↓	Q8↑	PSNR↑	SSIM↑	Time↓ (s)	Memory↓ (GB)
PanNet	ICCV'17	0.918	0.049	0.035	2.538	0.979	3.402	0.913	36.148	0.966	–	–
MSDCNN	JSTARS'18	0.924	0.050	0.028	2.489	0.979	3.300	0.914	36.329	0.967	–	–
FusionNet	ICCV'21	0.920	0.053	0.029	2.428	0.981	3.188	0.916	36.569	0.968	–	–
LAGConv	AAAI'22	0.915	0.055	0.033	2.380	0.981	3.153	0.916	36.732	0.970	0.004	3.281
S2DBPN	TGRS'23	0.946	0.030	0.025	2.245	0.985	3.019	0.917	37.216	0.972	0.005	2.387
PanDiff	TGRS'23	0.952	0.034	0.014	2.276	0.984	3.058	0.913	37.029	0.971	2.955	2.328
DCPNet	TGRS'24	0.923	0.036	0.043	2.301	0.984	3.083	0.915	37.009	0.972	0.109	7.213
TMDiff	TGRS'24	0.924	0.059	0.018	2.151	0.986	2.885	0.915	37.477	0.973	9.997	9.910
CANConv	CVPR'24	0.951	0.030	0.020	2.163	0.985	2.927	0.918	37.441	0.973	0.451	2.713
PAN-Crafter	–	0.958	0.027	0.016	2.040	0.988	2.787	0.922	37.956	0.976	0.009	1.711

PAN-Crafter needs 0.009 s and 1.711 GB: 50.11× faster than CANConv, which relies on k-means clustering for kernel generation, and 328.33× and 1110.78× faster than the diffusion models PanDiff and TMDiff.

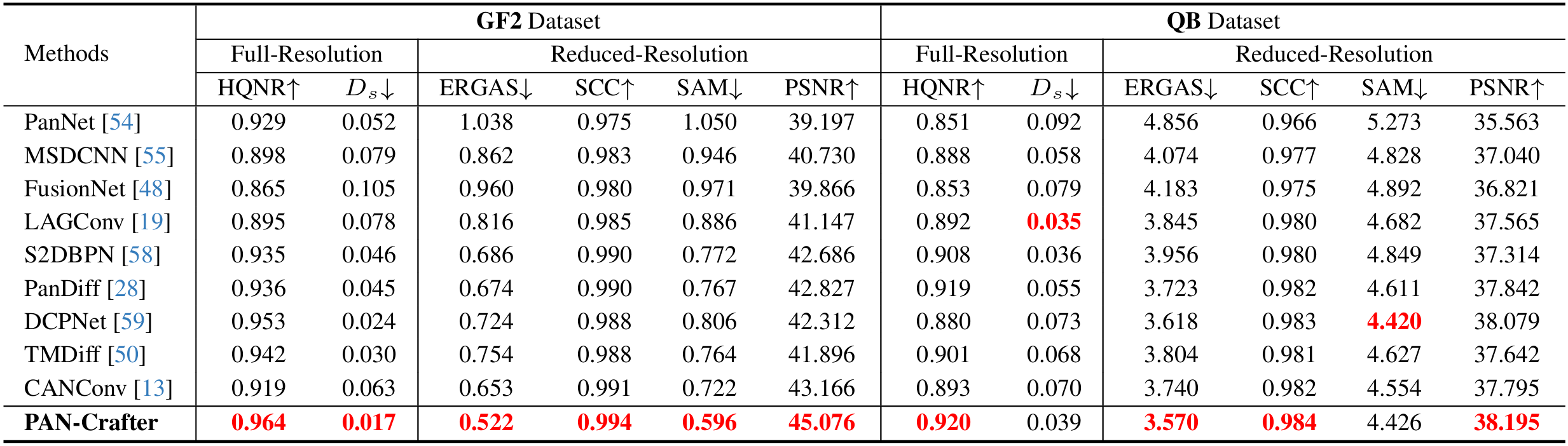

Table 2. Quantitative comparison on the GF2 and QB datasets. Bold indicates the best performance.

Bold best↓ lower is better · ↑ higher is better

Show

Scroll for more columns

Method	GF2						QB
	Full resolution		Reduced resolution				Full resolution		Reduced resolution
	HQNR↑	D_s↓	ERGAS↓	SCC↑	SAM↓	PSNR↑	HQNR↑	D_s↓	ERGAS↓	SCC↑	SAM↓	PSNR↑
PanNet	0.929	0.052	1.038	0.975	1.050	39.197	0.851	0.092	4.856	0.966	5.273	35.563
MSDCNN	0.898	0.079	0.862	0.983	0.946	40.730	0.888	0.058	4.074	0.977	4.828	37.040
FusionNet	0.865	0.105	0.960	0.980	0.971	39.866	0.853	0.079	4.183	0.975	4.892	36.821
LAGConv	0.895	0.078	0.816	0.985	0.886	41.147	0.892	0.035	3.845	0.980	4.682	37.565
S2DBPN	0.935	0.046	0.686	0.990	0.772	42.686	0.908	0.036	3.956	0.980	4.849	37.314
PanDiff	0.936	0.045	0.674	0.990	0.767	42.827	0.919	0.055	3.723	0.982	4.611	37.842
DCPNet	0.953	0.024	0.724	0.988	0.806	42.312	0.880	0.073	3.618	0.983	4.420	38.079
TMDiff	0.942	0.030	0.754	0.988	0.764	41.896	0.901	0.068	3.804	0.981	4.627	37.642
CANConv	0.919	0.063	0.653	0.991	0.722	43.166	0.893	0.070	3.740	0.982	4.554	37.795
PAN-Crafter	0.964	0.017	0.522	0.994	0.596	45.076	0.920	0.039	3.570	0.984	4.426	38.195

QB is known to be the most challenging dataset; PAN-Crafter is slightly behind in D_s and SAM there but best in HQNR, ERGAS, SCC and PSNR.

Table 3. Generalization to the unseen WV2 satellite dataset. All models are trained on WV3 and evaluated on WV2 to assess real-world generalization. Bold indicates the best performance.

Bold best↓ lower is better · ↑ higher is better

Scroll for more columns

Method	WV2 dataset (unseen satellite dataset)
Method	HQNR↑	ERGAS↓	SCC↑	SAM↓	PSNR↑
PanNet	0.875	5.481	0.876	7.040	27.120
MSDCNN	0.862	4.930	0.905	5.898	27.901
FusionNet	0.862	5.100	0.902	6.118	27.616
LAGConv	0.902	5.133	0.885	6.094	27.525
S2DBPN	0.813	5.703	0.915	7.063	26.748
PanDiff	0.932	4.291	0.916	5.430	28.964
DCPNet	0.797	5.507	0.931	10.174	27.063
TMDiff	0.874	5.157	0.875	6.087	27.473
CANConv	0.876	4.328	0.918	5.481	29.005
PAN-Crafter	0.942	4.169	0.924	5.078	29.276

Fully zero-shot: all models are trained on WV3 and tested on WV2 without any fine-tuning.

Ablation of MARs and CM3A Table 4

Table 4. Ablation studies on CM3A and MARs on the WV3 dataset. The combination of both components achieves the best performance, highlighting their synergistic effect in jointly refining spatial and spectral consistency.

Bold best✓ component used↓ lower is better · ↑ higher is better

Scroll for more columns

CM3A	MARs	WV3 dataset
CM3A	MARs	HQNR↑	ERGAS↓	SAM↓	PSNR↑	Time↓ (s)	Memory↓ (GB)
–	–	0.948	2.232	2.980	37.245	0.006	1.537
✓	–	0.949	2.212	2.970	37.285	0.007	1.556
–	✓	0.956	2.122	2.873	37.602	0.009	1.701
✓	✓	0.958	2.040	2.787	37.956	0.009	1.711

MARs alone raises PSNR from 37.245 to 37.602 dB; CM3A alone gives a marginal gain (37.285 dB), but together with MARs it reaches 37.956 dB and the best HQNR, ERGAS and SAM.

Computational cost Table 10

Table 10. Computational efficiency comparison of deep learning-based PS methods. Inference time (s), memory usage (MB), FLOPs (G) and parameter count (M); the paper lists one column per method.

Scroll for more columns

Method	Time (s)	Memory (MB)	FLOPs (G)	Params. (M)
LAGConv	0.004	3360.1	8.43	0.15
S2DBPN	0.005	2444.0	158.94	16.19
PanDiff	2.955	2383.6	62.07	9.52
DCPNet	0.109	7386.8	105.40	1.414
TMDiff	9.997	10147.4	1284.42	154.10
CANConv	0.451	2777.6	52.21	0.79
PAN-Crafter	0.009	1751.9	79.03	7.17

PAN-Crafter uses the least memory of the compared methods (1751.9 MB) and is faster than all of them except LAGConv and S2DBPN.

Reconstruct both modalities, align both ways

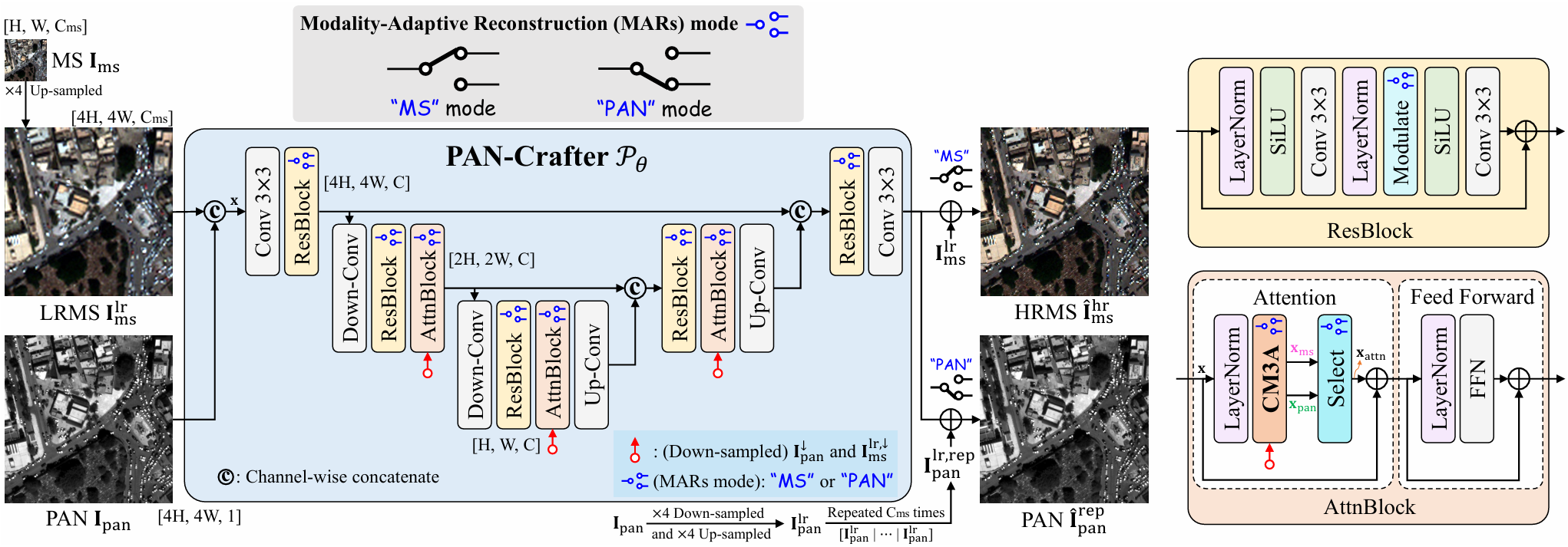

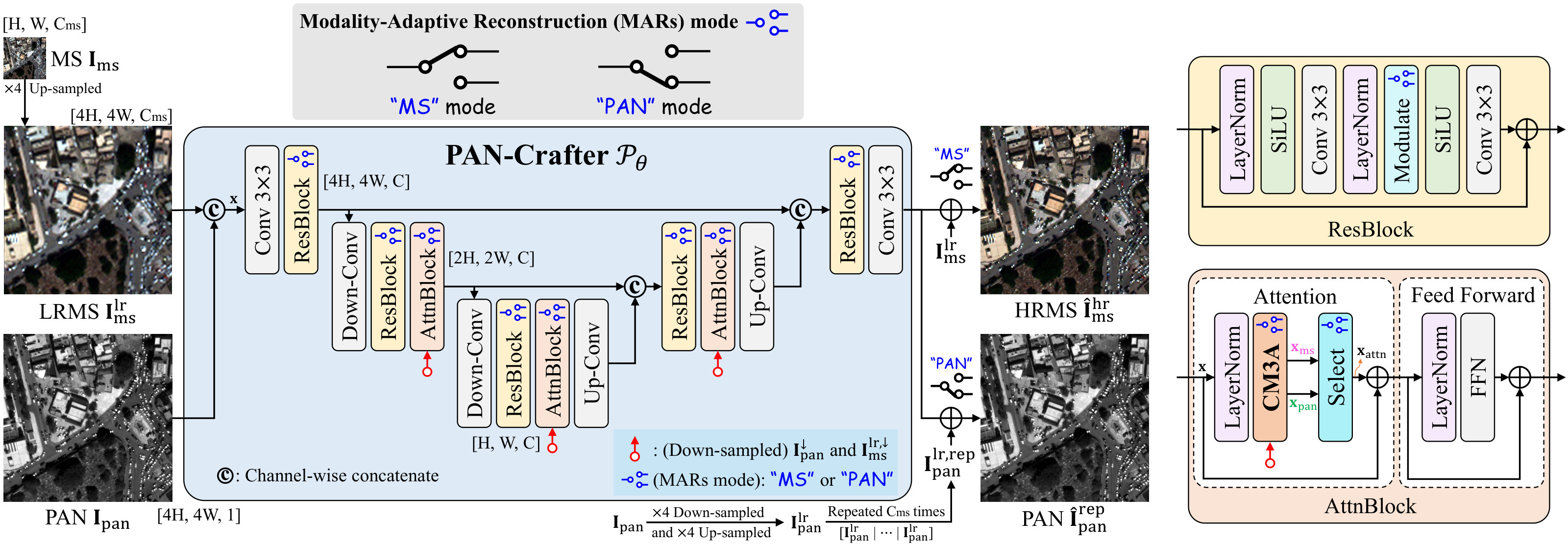

PAN-Crafter architecture. The up-sampled LRMS image and the PAN image are concatenated and passed through a U-Net of convolutions, ResBlocks and AttnBlocks with down- and up-sampling; a Modality-Adaptive Reconstruction switch selects MS mode, which adds the output to the LRMS image to give the HRMS image, or PAN mode, which adds it to a down- and up-sampled PAN image repeated over the channels to back-reconstruct the PAN image. Insets show the ResBlock (LayerNorm, SiLU, convolution, mode-dependent modulation) and the AttnBlock (LayerNorm, CM3A, select, feed-forward). — **PAN-Crafter architecture.** An encoder–decoder with ResBlocks and CM3A at multiple scales; the MARs mode switches the output between the HRMS image and the back-reconstructed PAN image.

01Modality-Adaptive Reconstruction (MARs). One network, two modes: MS mode predicts the HRMS image, PAN mode back-reconstructs the PAN image, whose high-frequency details act as auxiliary self-supervision. Inference uses MS mode.

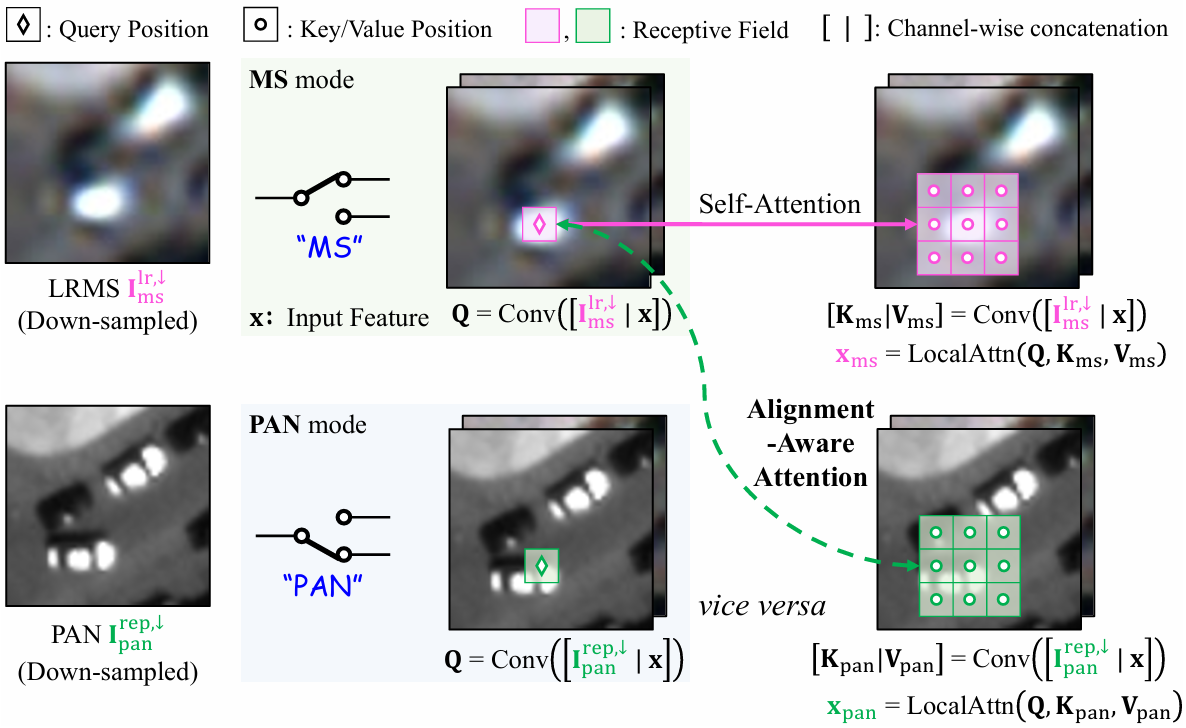

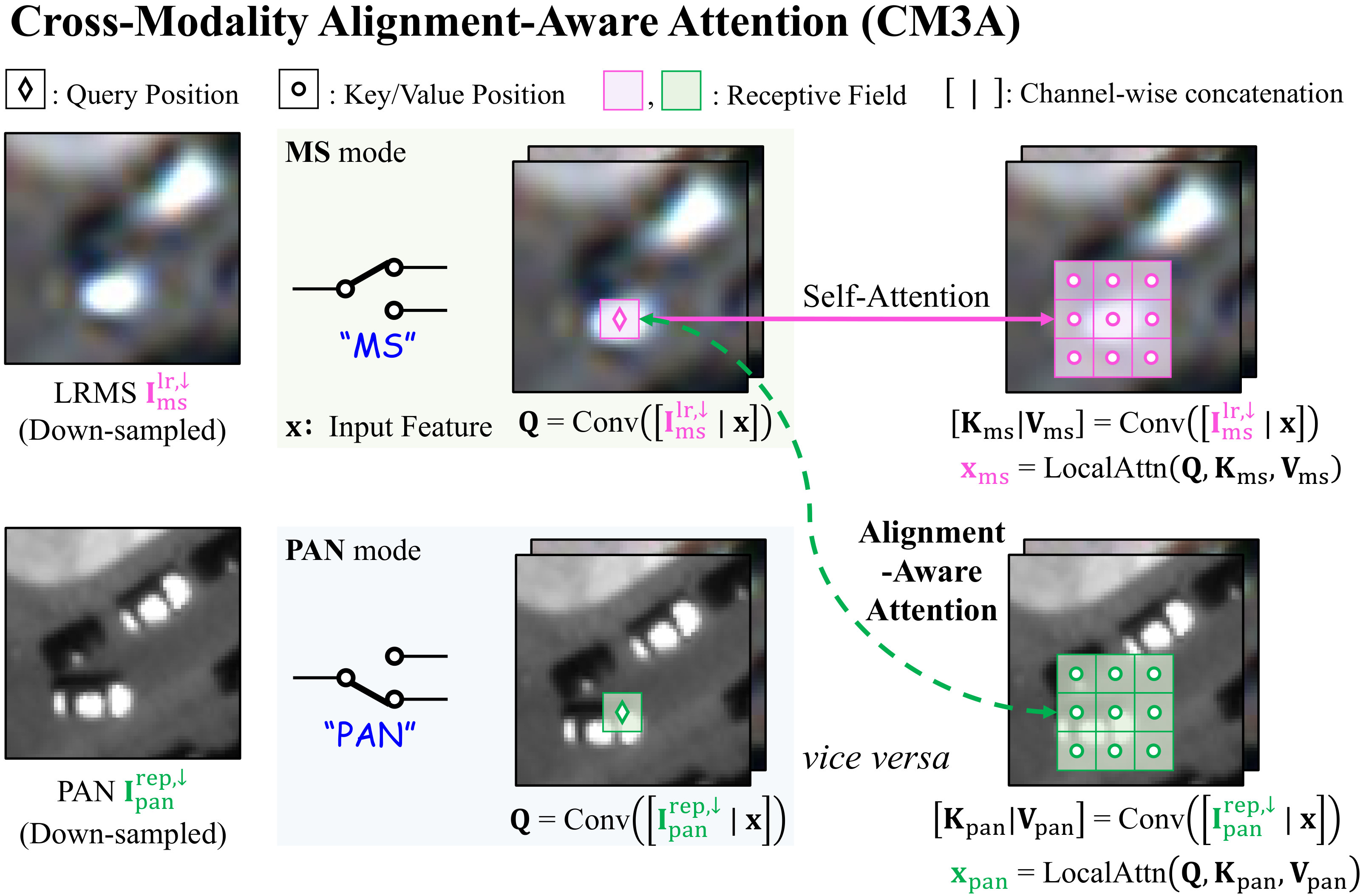

02CM3A, in both directions. Local 3 × 3 attention aligns MS texture to PAN structure in MS mode and PAN structure to MS texture in PAN mode; down-sampled input images replace fixed positional embeddings.
03A multi-scale U-Net. ResBlocks with mode-dependent modulation at every scale; AttnBlocks with CM3A only at the low- and mid-resolution stages, to reduce computational overhead: 0.009 s and 1.711 GB per 256 × 256 × 8 target.

BibTeX

@inproceedings{do2025pancrafter,
  title={PAN-Crafter: Learning modality-consistent alignment for PAN-sharpening},
  author={Do, Jeonghyeok and Kim, Sungpyo and Youk, Geunhyuk and Lee, Jaehyup and Kim, Munchurl},
  booktitle={2025 IEEE/CVF International Conference on Computer Vision (ICCV)},
  pages={4242--4252},
  year={2025},
  organization={IEEE}
}
