U-Know-DiffPAN: An Uncertainty-aware Knowledge Distillation Diffusion Framework with Details Enhancement for PAN-Sharpening

Conventional methods for PAN-sharpening often struggle to restore fine details due to limitations in leveraging high-frequency information. Moreover, diffusion-based approaches lack sufficient conditioning to fully utilize Panchromatic (PAN) images and low-resolution multispectral (LRMS) inputs effectively. To address these challenges, we propose an uncertainty-aware knowledge distillation diffusion framework with details enhancement for PAN-sharpening, called U-Know-DiffPAN. The U-Know-DiffPAN incorporates uncertainty-aware knowledge distillation for effective transfer of feature details from our teacher model to a student one. The teacher model in our U-Know-DiffPAN captures frequency details through frequency selective attention, facilitating accurate reverse process learning. By conditioning the encoder on compact vector representations of PAN and LRMS and the decoder on Wavelet transforms, we enable rich frequency utilization. So, the high-capacity teacher model distills frequency-rich features into a lightweight student model aided by an uncertainty map. From this, the teacher model can guide the student model to focus on difficult image regions for PAN-sharpening via the usage of the uncertainty map. Extensive experiments on diverse datasets demonstrate the robustness and superior performance of our U-Know-DiffPAN over very recent state-of-the-art PAN-sharpening methods.

Lighter student, finer details

A diffusion teacher’s uncertainty map guides a lightweight student to difficult regions, such as cars.

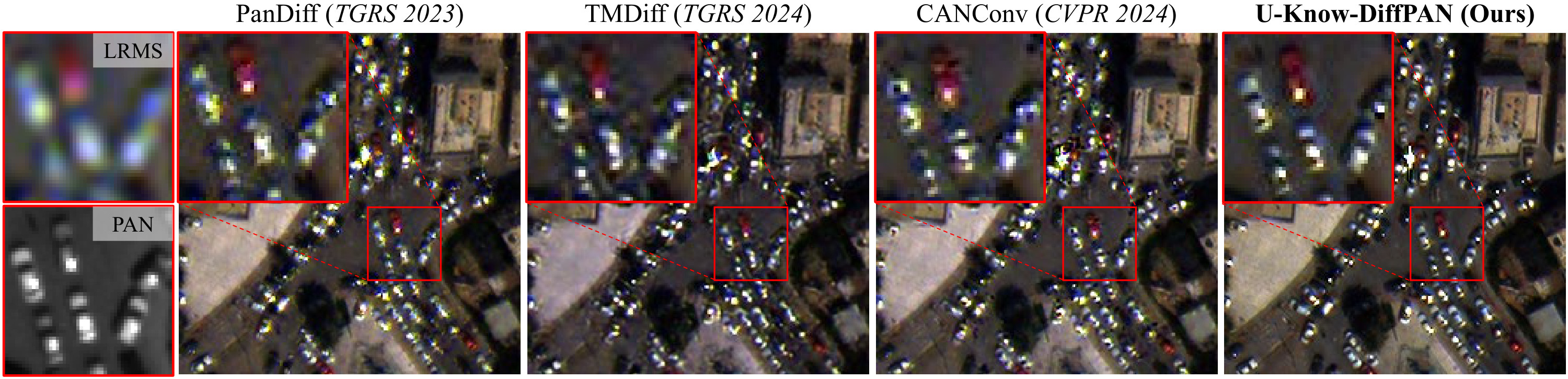

Full-resolution WorldView-3 parking lot: LRMS and PAN crops of a group of cars, then PanDiff, TMDiff, CANConv and U-Know-DiffPAN (ours), each with a red box on the cars and an enlarged inset; the U-Know-DiffPAN inset shows the cars most clearly. — **Full-resolution WorldView-3.** PanDiff, TMDiff, CANConv and U-Know-DiffPAN (the student FSA-S); the red boxes enlarge cars, a highly uncertain region.

From LRMS to HRMS

U-Know-DiffPAN outputs next to the upsampled LRMS input, on a reduced- and a full-resolution test image of each satellite. Select a tile to open the comparison slider.

LRMS input (upsampled) U-Know-DiffPAN (ours)

Use the arrows or the ← → keys to switch between reduced and full resolution · click a tile to open the comparison sliderSwipe or use the arrows to switch resolution · tap a tile to open the comparison slider

Paper figures

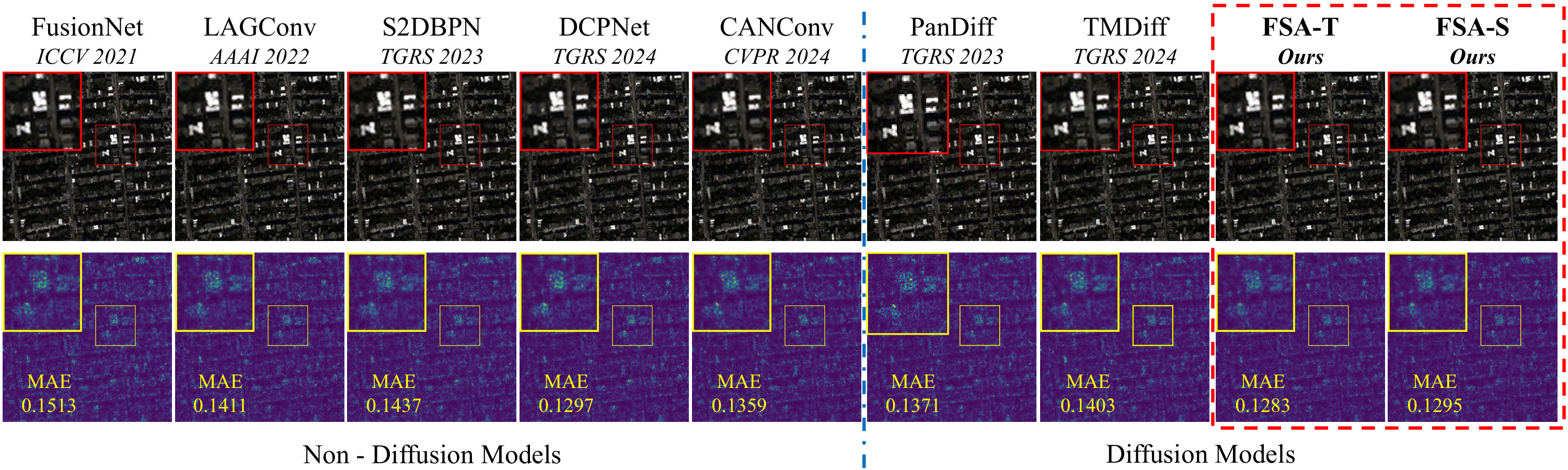

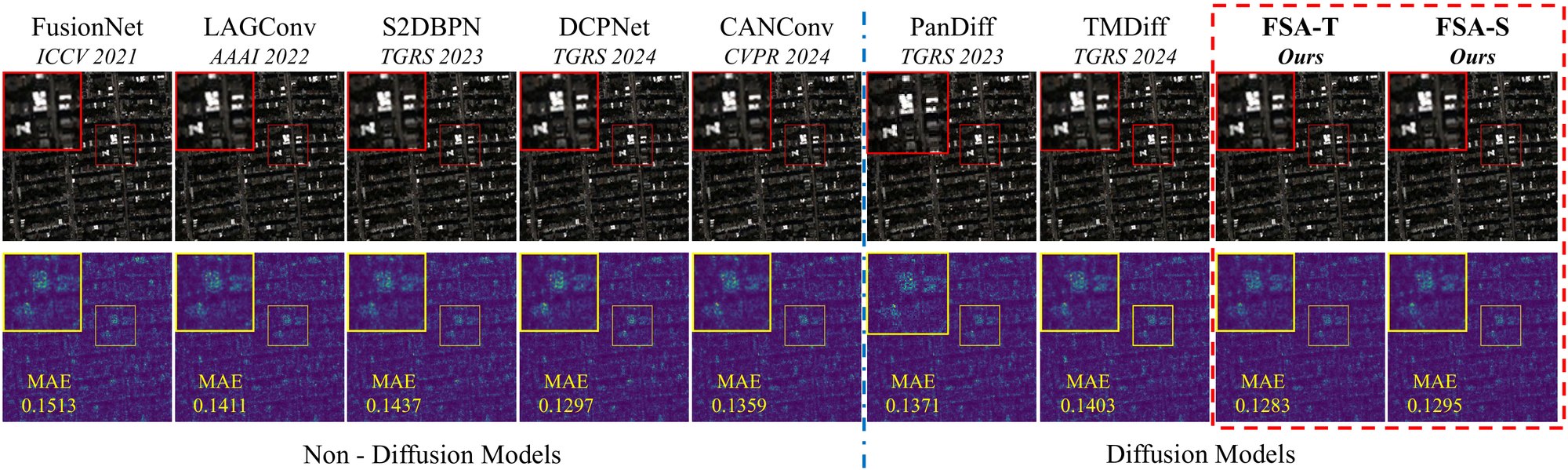

Nine methods at reduced resolution, with error maps and MAE against the ground truth; six at full resolution, where no ground truth exists; and the teacher’s uncertainty maps.

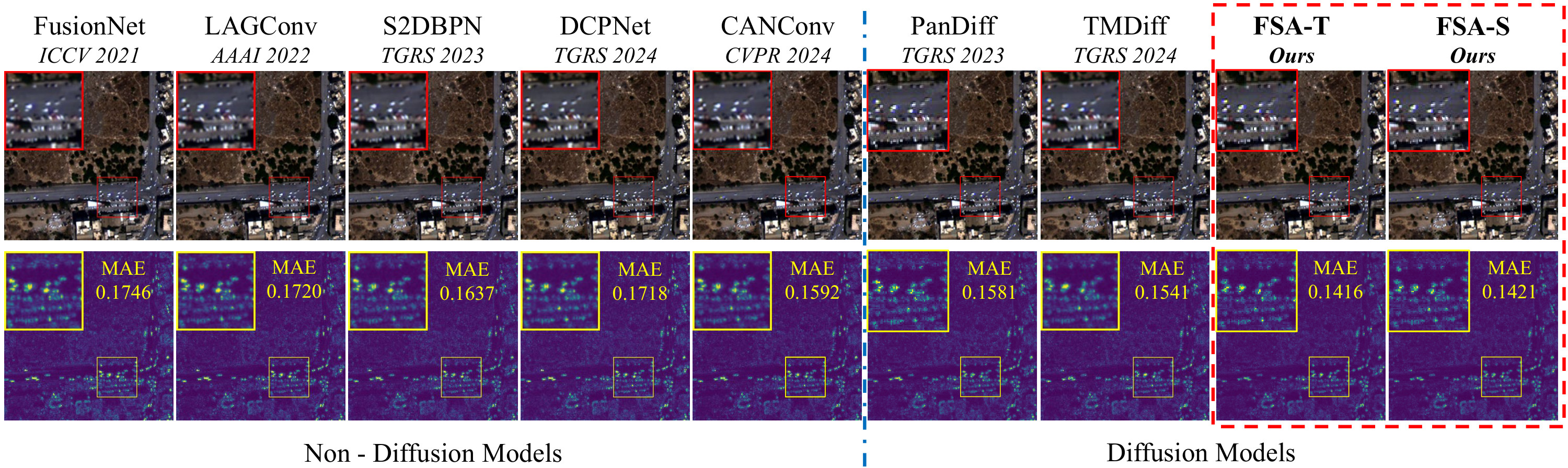

Reduced-resolution WorldView-3 scene. Top row: outputs of FusionNet, LAGConv, S2DBPN, DCPNet, CANConv, PanDiff, TMDiff, FSA-T and FSA-S, each with a red box and an enlarged inset. Bottom row: error maps against the ground truth with MAE FusionNet 0.1746, LAGConv 0.1720, S2DBPN 0.1637, DCPNet 0.1718, CANConv 0.1592, PanDiff 0.1581, TMDiff 0.1541, FSA-T 0.1416, FSA-S 0.1421. — **WV3, reduced resolution.** Output HRMS (top) and error map against the ground truth, with its MAE (bottom).

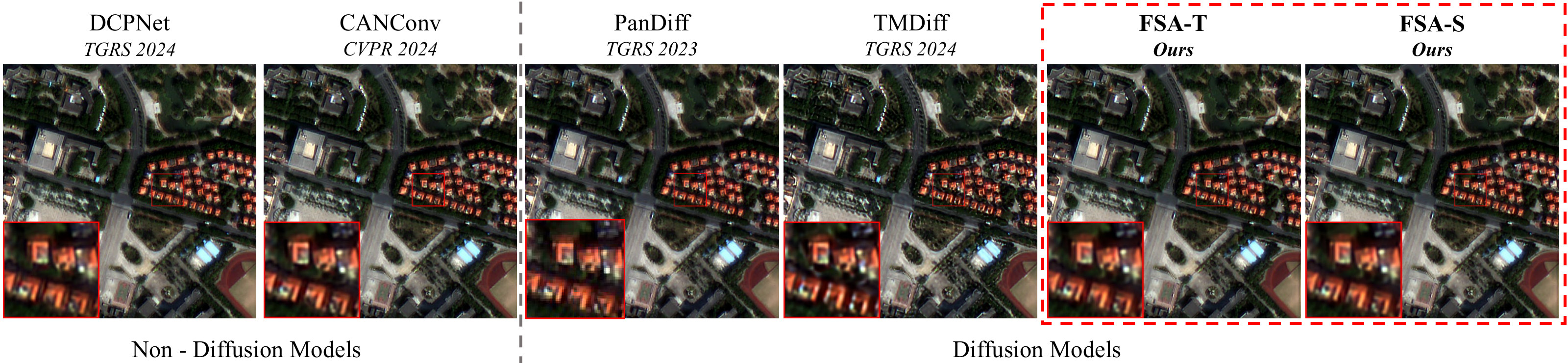

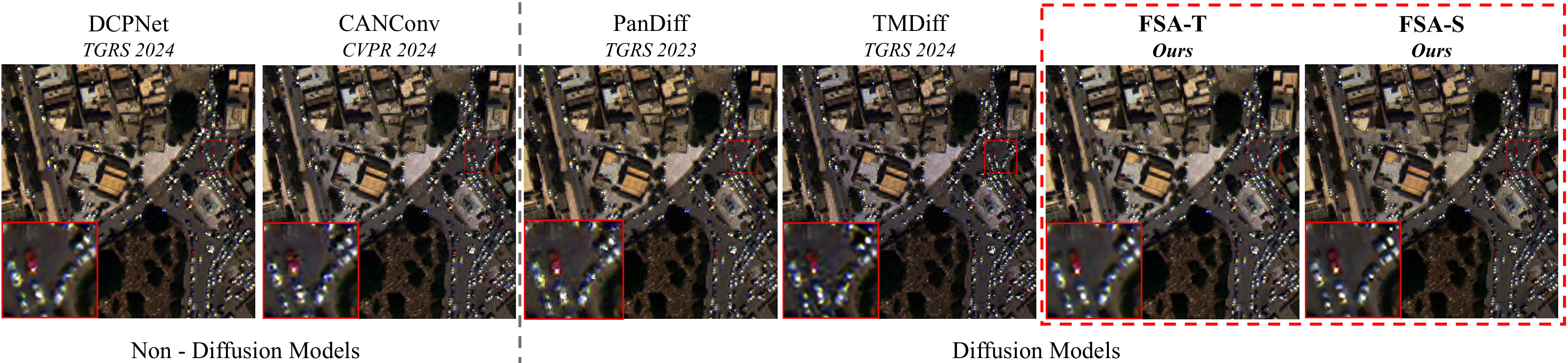

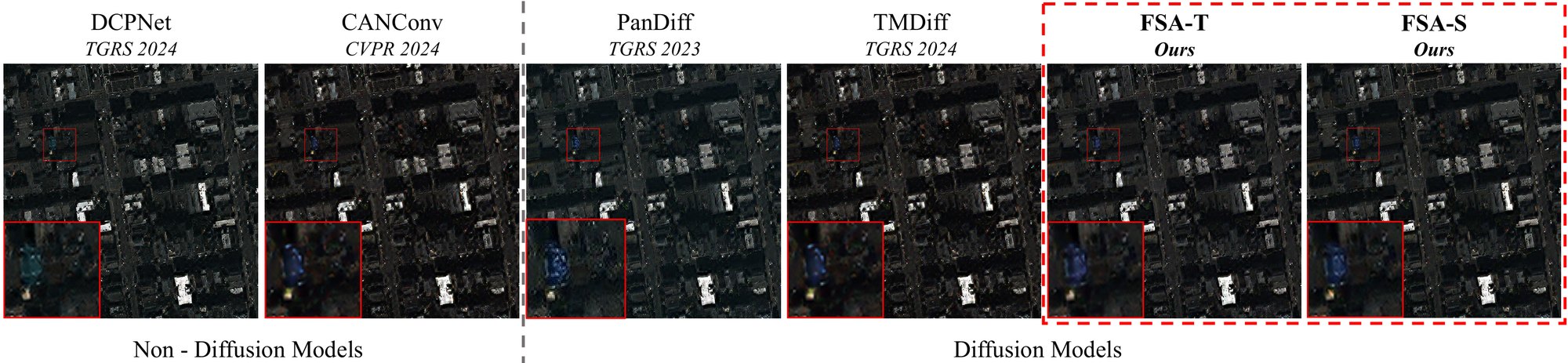

Full-resolution WorldView-3 scene: outputs of DCPNet, CANConv, PanDiff, TMDiff, FSA-T and FSA-S, each with a red box and an enlarged inset. — **WV3, full resolution.** Output HRMS of DCPNet, CANConv, PanDiff, TMDiff, FSA-T and FSA-S; no ground truth exists at full resolution.

Quantitative results

FSA-T or FSA-S is best on every reduced-resolution metric on WV3, QB and GF2; on WV3 and QB, the lightweight student surpasses its teacher on several metrics.

Table 3. Performance comparison of different models on WV3 and QB datasets. Bold and underline highlight the best- and 2nd-best performing models. The results for the full-resolution datasets and detailed results with standard deviations are provided in Table 8.

Bold bestUnderline second best↓ lower is better · ↑ higher is better

Show

Scroll for more columns

Method	Venue	WV3 (Reduced-Resolution)						QB (Reduced-Resolution)
Method	Venue	PSNR↑	SSIM↑	SAM↓	ERGAS↓	SCC↑	Q8↑	PSNR↑	SSIM↑	SAM↓	ERGAS↓	SCC↑	Q4↑
Non-diffusion models
PanNet	ICCV'17	36.148	0.966	3.402	2.538	0.979	0.913	35.563	0.939	5.273	4.856	0.966	0.911
MSDCNN	JSTARS'18	36.329	0.967	3.300	2.489	0.979	0.914	37.040	0.954	4.828	4.074	0.977	0.925
FusionNet	ICCV'21	36.569	0.968	3.188	2.428	0.981	0.916	36.821	0.952	4.892	4.183	0.975	0.923
LAGConv	AAAI'22	36.732	0.970	3.153	2.380	0.981	0.916	37.565	0.958	4.682	3.845	0.980	0.930
S2DBPN	TGRS'23	37.216	0.972	3.019	2.245	0.985	0.917	37.314	0.956	4.849	3.956	0.980	0.928
DCPNet	TGRS'24	37.009	0.972	3.083	2.301	0.984	0.915	38.079	0.963	4.420	3.618	0.983	0.935
CANConv	CVPR'24	37.441	0.973	2.927	2.163	0.985	0.918	37.795	0.960	4.554	3.740	0.982	0.935
Diffusion models
PanDiff	TGRS'23	37.029	0.971	3.058	2.276	0.984	0.913	37.842	0.959	4.611	3.723	0.982	0.935
TMDiff	TGRS'24	37.477	0.973	2.885	2.151	0.986	0.915	37.642	0.958	4.627	3.804	0.981	0.930
FSA-S	Ours	37.930	0.976	2.797	2.046	0.988	0.922	38.361	0.964	4.337	3.500	0.984	0.938
FSA-T	Ours	37.894	0.976	2.801	2.055	0.987	0.921	38.343	0.964	4.349	3.502	0.985	0.938

FSA-T is the teacher and FSA-S the distilled student, with 25.492M and 9.115M parameters (Table 4).

Table 2. Comparison of different models on the GaoFen-2 (GF2) dataset. Bold indicates the best-performing model and underline the second-best performance. Standard deviations of the metrics across test samples are provided in Table 8.

Bold bestUnderline second best↓ lower is better · ↑ higher is better

Show

Scroll for more columns

Method	Venue	Reduced-Resolution						Full-Resolution
Method	Venue	PSNR↑	SSIM↑	SAM↓	ERGAS↓	SCC↑	Q4↑	D_λ↓	D_s↓	HQNR↑
Non-diffusion models
PanNet	ICCV'17	39.197	0.959	1.050	1.038	0.975	0.963	0.020	0.052	0.929
MSDCNN	JSTARS'18	40.730	0.971	0.946	0.862	0.983	0.972	0.026	0.079	0.898
FusionNet	ICCV'21	39.866	0.966	0.971	0.960	0.980	0.967	0.034	0.105	0.865
LAGConv	AAAI'22	41.147	0.974	0.886	0.816	0.985	0.974	0.030	0.078	0.895
S2DBPN	TGRS'23	42.686	0.980	0.772	0.686	0.990	0.981	0.020	0.046	0.935
DCPNet	TGRS'24	42.312	0.979	0.806	0.724	0.988	0.980	0.024	0.024	0.953
CANConv	CVPR'24	43.166	0.982	0.722	0.653	0.991	0.983	0.019	0.063	0.919
Diffusion models
PanDiff	TGRS'23	42.827	0.980	0.767	0.674	0.990	0.981	0.020	0.045	0.936
TMDiff	TGRS'24	41.896	0.977	0.764	0.754	0.988	0.979	0.029	0.030	0.942
FSA-S	Ours	44.585	0.986	0.624	0.548	0.993	0.987	0.018	0.037	0.944
FSA-T	Ours	44.757	0.988	0.603	0.537	0.994	0.988	0.017	0.029	0.953

Table 4. Computational complexity comparison for diffusion-based models. Best values are in bold.

Bold bestlower is better in every column

Scroll for more columns

Method	Params. (M)	FLOPs (T)	Time (s)	Memory (GB)
PanDiff	12.556	0.471	19.522	3.260
TMDiff	153.939	5.517	67.461	10.483
FSA-T	25.492	1.402	25.495	5.910
FSA-S	9.115	0.346	12.287	2.136

Among the diffusion models, FSA-S has the fewest parameters and FLOPs, the shortest inference time and the lowest memory use.

Full resolution and standard deviations Table 8

Table 8. Additional PAN-sharpening results by our U-Know-DiffPAN and other SOTA methods for the WV3, QB, and GF2 dataset. The best (second best) performance in each block is in bold (underlined).

Bold bestUnderline second best↓ lower is better · ↑ higher is better

Show

Scroll for more columns

Model	Reduced-Resolution						Full-Resolution
Model	PSNR↑	SSIM↑	SAM↓	ERGAS↓	SCC↑	Q8↑	D_λ↓	D_s↓	HQNR↑
PanNet	36.148 ± 1.958	0.966 ± 0.011	3.402 ± 0.672	2.538 ± 0.597	0.979 ± 0.006	0.913 ± 0.087	0.035 ± 0.014	0.049 ± 0.019	0.918 ± 0.031
MSDCNN	36.329 ± 1.748	0.967 ± 0.010	3.300 ± 0.654	2.489 ± 0.620	0.979 ± 0.007	0.914 ± 0.087	0.028 ± 0.013	0.050 ± 0.020	0.924 ± 0.030
FusionNet	36.569 ± 1.666	0.968 ± 0.009	3.188 ± 0.628	2.428 ± 0.621	0.981 ± 0.007	0.916 ± 0.087	0.029 ± 0.011	0.053 ± 0.021	0.920 ± 0.030
LAGNet	36.732 ± 1.723	0.970 ± 0.009	3.153 ± 0.608	2.380 ± 0.617	0.981 ± 0.007	0.916 ± 0.087	0.033 ± 0.012	0.055 ± 0.023	0.915 ± 0.033
S2DBPN	37.216 ± 1.888	0.972 ± 0.009	3.019 ± 0.588	2.245 ± 0.541	0.985 ± 0.005	0.917 ± 0.091	0.025 ± 0.010	0.030 ± 0.010	0.946 ± 0.018
DCPNet	37.009 ± 1.735	0.972 ± 0.008	3.083 ± 0.537	2.301 ± 0.569	0.984 ± 0.005	0.915 ± 0.092	0.043 ± 0.018	0.036 ± 0.012	0.923 ± 0.027
CANConv	37.441 ± 1.788	0.973 ± 0.008	2.927 ± 0.536	2.163 ± 0.481	0.985 ± 0.005	0.918 ± 0.082	0.020 ± 0.008	0.030 ± 0.008	0.951 ± 0.013
PanDiff	37.029 ± 1.796	0.971 ± 0.008	3.058 ± 0.567	2.276 ± 0.545	0.984 ± 0.004	0.913 ± 0.084	0.014 ± 0.005	0.034 ± 0.005	0.952 ± 0.009
TMDiff	37.477 ± 1.923	0.973 ± 0.008	2.885 ± 0.549	2.151 ± 0.458	0.986 ± 0.004	0.915 ± 0.086	0.018 ± 0.007	0.059 ± 0.009	0.924 ± 0.015
FSA-T	37.894 ± 1.820	0.976 ± 0.007	2.801 ± 0.517	2.055 ± 0.463	0.987 ± 0.003	0.921 ± 0.083	0.014 ± 0.005	0.032 ± 0.003	0.954 ± 0.006
FSA-S	37.930 ± 1.824	0.976 ± 0.007	2.797 ± 0.526	2.046 ± 0.454	0.988 ± 0.003	0.922 ± 0.083	0.016 ± 0.006	0.029 ± 0.003	0.955 ± 0.008

Bold bestUnderline second best↓ lower is better · ↑ higher is better

Show

Scroll for more columns

Model	Reduced-Resolution						Full-Resolution
Model	PSNR↑	SSIM↑	SAM↓	ERGAS↓	SCC↑	Q4↑	D_λ↓	D_s↓	HQNR↑
PanNet	35.563 ± 1.930	0.939 ± 0.012	5.273 ± 0.946	4.856 ± 0.590	0.966 ± 0.015	0.911 ± 0.094	0.063 ± 0.019	0.092 ± 0.021	0.851 ± 0.035
MSDCNN	37.040 ± 1.778	0.954 ± 0.007	4.828 ± 0.824	4.074 ± 0.244	0.977 ± 0.010	0.925 ± 0.098	0.058 ± 0.014	0.058 ± 0.027	0.888 ± 0.037
FusionNet	36.821 ± 1.765	0.952 ± 0.007	4.892 ± 0.822	4.183 ± 0.266	0.975 ± 0.011	0.923 ± 0.100	0.074 ± 0.022	0.079 ± 0.025	0.853 ± 0.041
LAGNet	37.565 ± 1.721	0.958 ± 0.006	4.682 ± 0.785	3.845 ± 0.323	0.980 ± 0.009	0.930 ± 0.095	0.075 ± 0.019	0.035 ± 0.009	0.892 ± 0.024
S2DBPN	37.314 ± 1.782	0.956 ± 0.006	4.849 ± 0.822	3.956 ± 0.291	0.980 ± 0.008	0.928 ± 0.093	0.059 ± 0.026	0.036 ± 0.023	0.908 ± 0.044
DCPNet	38.079 ± 1.454	0.963 ± 0.004	4.420 ± 0.710	3.618 ± 0.313	0.983 ± 0.010	0.935 ± 0.095	0.051 ± 0.017	0.073 ± 0.013	0.880 ± 0.013
CANConv	37.795 ± 1.801	0.960 ± 0.006	4.554 ± 0.788	3.740 ± 0.304	0.982 ± 0.007	0.935 ± 0.087	0.039 ± 0.012	0.070 ± 0.017	0.893 ± 0.010
PanDiff	37.842 ± 1.721	0.959 ± 0.006	4.611 ± 0.768	3.723 ± 0.280	0.982 ± 0.007	0.935 ± 0.084	0.028 ± 0.011	0.055 ± 0.012	0.919 ± 0.010
TMDiff	37.642 ± 1.831	0.958 ± 0.006	4.627 ± 0.814	3.804 ± 0.279	0.981 ± 0.008	0.930 ± 0.096	0.034 ± 0.016	0.068 ± 0.012	0.901 ± 0.011
FSA-T	38.343 ± 1.718	0.964 ± 0.005	4.349 ± 0.723	3.502 ± 0.272	0.985 ± 0.007	0.938 ± 0.089	0.036 ± 0.018	0.031 ± 0.014	0.934 ± 0.029
FSA-S	38.361 ± 1.709	0.964 ± 0.005	4.337 ± 0.733	3.500 ± 0.272	0.984 ± 0.007	0.938 ± 0.090	0.035 ± 0.011	0.035 ± 0.021	0.931 ± 0.029

Bold bestUnderline second best↓ lower is better · ↑ higher is better

Show

Scroll for more columns

Model	Reduced-Resolution						Full-Resolution
Model	PSNR↑	SSIM↑	SAM↓	ERGAS↓	SCC↑	Q4↑	D_λ↓	D_s↓	HQNR↑
PanNet	39.197 ± 2.009	0.959 ± 0.011	1.050 ± 0.209	1.038 ± 0.214	0.975 ± 0.006	0.963 ± 0.009	0.020 ± 0.012	0.052 ± 0.009	0.929 ± 0.013
MSDCNN	40.730 ± 1.564	0.971 ± 0.006	0.946 ± 0.166	0.862 ± 0.141	0.983 ± 0.003	0.972 ± 0.009	0.026 ± 0.014	0.079 ± 0.011	0.898 ± 0.016
FusionNet	39.866 ± 1.955	0.966 ± 0.009	0.971 ± 0.195	0.960 ± 0.193	0.980 ± 0.005	0.967 ± 0.008	0.034 ± 0.013	0.105 ± 0.013	0.865 ± 0.018
LAGNet	41.147 ± 1.384	0.974 ± 0.005	0.886 ± 0.140	0.816 ± 0.121	0.985 ± 0.003	0.974 ± 0.009	0.030 ± 0.014	0.078 ± 0.013	0.895 ± 0.021
S2DBPN	42.686 ± 1.676	0.980 ± 0.005	0.772 ± 0.149	0.686 ± 0.125	0.990 ± 0.002	0.981 ± 0.007	0.020 ± 0.012	0.046 ± 0.007	0.935 ± 0.011
DCPNet	42.312 ± 1.682	0.979 ± 0.005	0.806 ± 0.153	0.724 ± 0.138	0.988 ± 0.003	0.980 ± 0.007	0.024 ± 0.022	0.024 ± 0.008	0.953 ± 0.019
CANConv	43.166 ± 1.705	0.982 ± 0.004	0.722 ± 0.138	0.653 ± 0.124	0.991 ± 0.002	0.983 ± 0.006	0.019 ± 0.010	0.063 ± 0.009	0.919 ± 0.011
PanDiff	42.827 ± 1.462	0.980 ± 0.005	0.767 ± 0.134	0.674 ± 0.110	0.990 ± 0.002	0.981 ± 0.007	0.020 ± 0.014	0.045 ± 0.009	0.936 ± 0.011
TMDiff	41.896 ± 1.765	0.977 ± 0.005	0.764 ± 0.155	0.754 ± 0.143	0.988 ± 0.003	0.979 ± 0.007	0.029 ± 0.011	0.030 ± 0.010	0.942 ± 0.016
FSA-T	44.757 ± 1.359	0.988 ± 0.003	0.603 ± 0.102	0.537 ± 0.077	0.994 ± 0.001	0.988 ± 0.006	0.017 ± 0.010	0.030 ± 0.008	0.953 ± 0.013
FSA-S	44.585 ± 1.521	0.986 ± 0.003	0.624 ± 0.109	0.548 ± 0.091	0.993 ± 0.001	0.987 ± 0.007	0.018 ± 0.011	0.037 ± 0.007	0.944 ± 0.012

Ablations Tables 5, 6 and 7

Table 5. Comparison of Results with and without FFA and HQFE Blocks in FSA-T. Best values are in bold.

Bold best↓ lower is better · ↑ higher is better

Scroll for more columns

Encoder FFA	Decoder HQFE	GF2 (Reduced-Resolution)
Encoder FFA	Decoder HQFE	SAM↓	ERGAS↓	SCC↑	Q4↑
		0.654 ± 0.112	0.661 ± 0.076	0.992 ± 0.001	0.986 ± 0.007
✓		0.654 ± 0.112	0.636 ± 0.077	0.993 ± 0.002	0.986 ± 0.007
	✓	0.617 ± 0.117	0.556 ± 0.104	0.993 ± 0.002	0.987 ± 0.007
✓	✓	0.603 ± 0.102	0.537 ± 0.077	0.994 ± 0.001	0.988 ± 0.006

Table 6. Impact of our U-know loss function design. Best values are in bold.

Bold best↓ lower is better · ↑ higher is better

Scroll for more columns

Loss func.	GF2 (Full-Resolution)
Loss func.	D_λ↓	D_s↓	HQNR↑
ℒ₁	0.026 ± 0.014	0.040 ± 0.017	0.935 ± 0.020
ℒ_KD	0.025 ± 0.015	0.038 ± 0.016	0.938 ± 0.021
ℒ_U-know	0.018 ± 0.011	0.037 ± 0.007	0.944 ± 0.012

Table 7. Comparison of results between DWT and SWT conditioning at the SWTCA block in FSA-T Ψ, with the best values in bold.

Bold best↓ lower is better · ↑ higher is better

Scroll for more columns

Condition	GF2 (Reduced-Resolution)
Condition	SAM↓	ERGAS↓	SCC↑	Q4↑
DWT	0.646 ± 0.117	0.567 ± 0.095	0.993 ± 0.002	0.987 ± 0.007
SWT	0.603 ± 0.102	0.537 ± 0.077	0.994 ± 0.001	0.988 ± 0.006

Datasets Table 1

Table 1. Detailed information of Worldview-3, QuickBird, and GaoFen-2 datasets.

Scroll for more columns

Satellite		WorldView-3	QuickBird	GaoFen-2
Number of Band		8	4	4
Spatial Resolution (m)	PAN	0.3	0.6	0.8
Spatial Resolution (m)	LRMS	1.2	2.4	3.2
Radiometric Resolution (bit)		11	11	10
Number of (Train / Test) Images		9,714 / 20	17,139 / 20	19,809 / 20
Patch Size	PAN	64×64×1	64×64×1	64×64×1
Patch Size	LRMS	16×16×8	16×16×4	16×16×4

Trust the teacher where it is certain

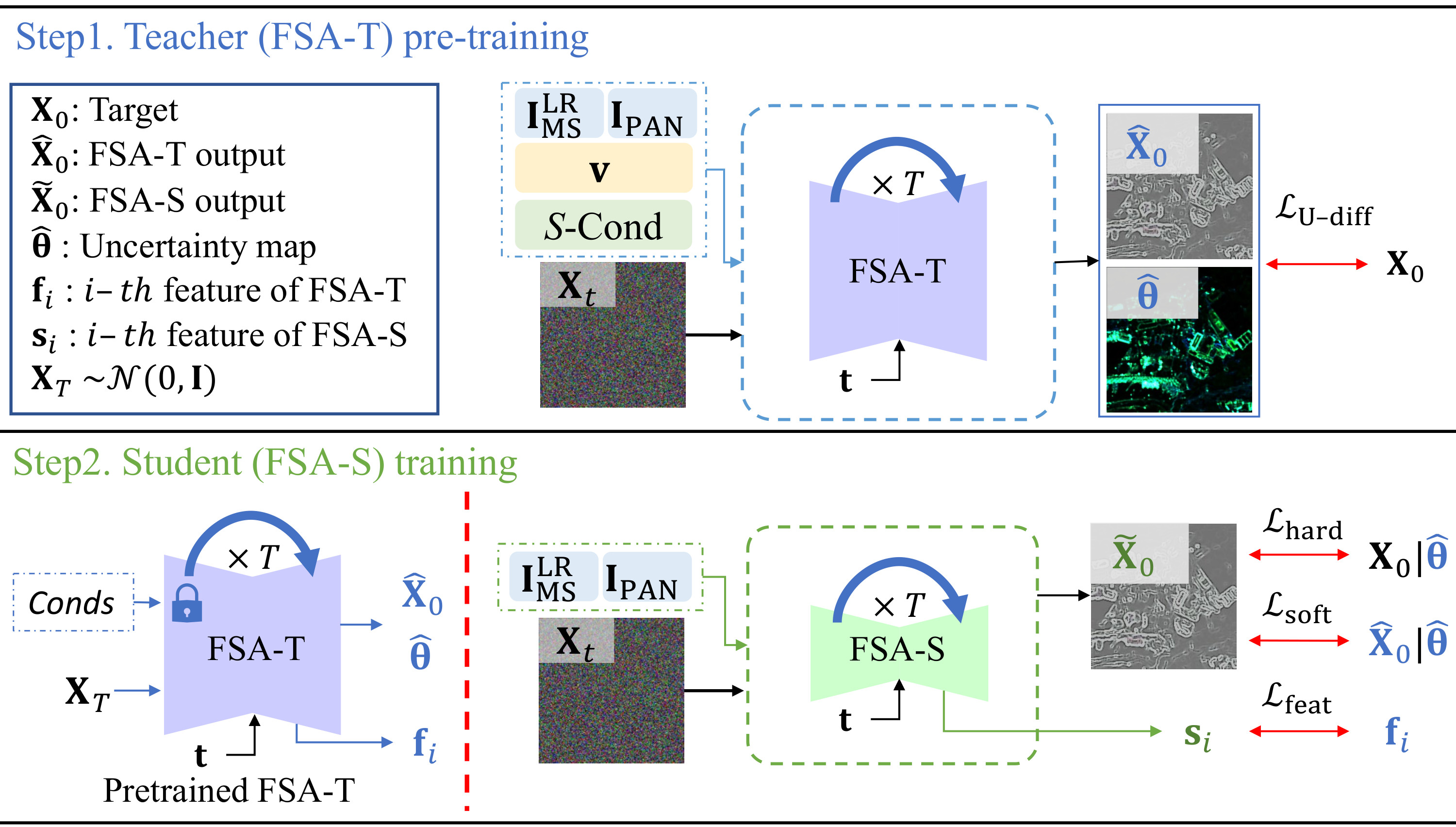

U-Know-DiffPAN in two steps. Step 1, teacher pre-training: FSA-T receives the noisy residual, the LRMS and PAN images, the compact vector v and the SWT condition, and outputs the residual and the uncertainty map, trained with the uncertainty-driven diffusion loss. Step 2, student training: the frozen, pretrained FSA-T provides its output, uncertainty map and features; the student FSA-S, conditioned only on LRMS and PAN, is trained with the hard, soft and feature losses. — **U-Know-DiffPAN.** Step 1 pre-trains the teacher FSA-T, which predicts the output and an uncertainty map; Step 2 distills it into the lightweight student FSA-S.

01Frequency-selective teacher. FSA-T conditions its encoder on a compact vector of PAN and LRMS (FFA blocks); in its decoder, HQFE blocks refine frequencies with Fourier attention (FTCA) and inject stationary-wavelet components of PAN and LRMS by cross-attention (SWTCA).

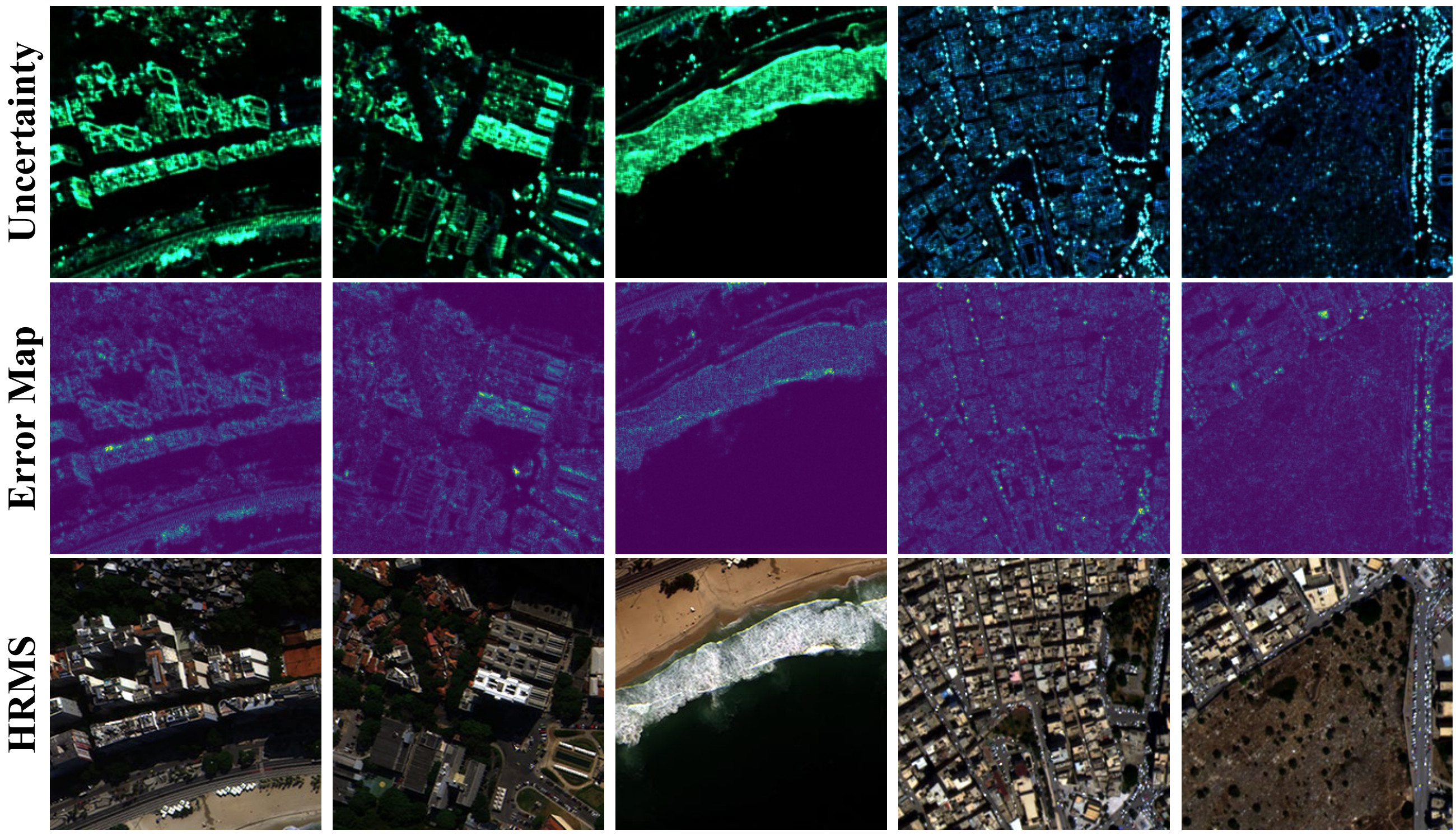

02Uncertainty from the teacher. Trained with an uncertainty-driven diffusion loss, FSA-T predicts the residual together with a pixel-wise uncertainty map θ̂, which is high on object edges.
03Uncertainty-aware distillation. The student FSA-S (ResBlocks only) learns from the ground truth weighted by τ + θ̂, from the teacher’s output weighted by τ − θ̂, and from the teacher’s intermediate features.

BibTeX

@inproceedings{kim2025uknowdiffpan,
  title={U-Know-DiffPAN: An uncertainty-aware knowledge distillation diffusion framework with details enhancement for PAN-sharpening},
  author={Kim, Sungpyo and Do, Jeonghyeok and Lee, Jaehyup and Kim, Munchurl},
  booktitle={2025 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR)},
  pages={23069--23079},
  year={2025},
  organization={IEEE}
}
